One minute understanding of electronic anti glare interior rearview mirror (EC mirror)
2023-09-23
1.Brief Introduction

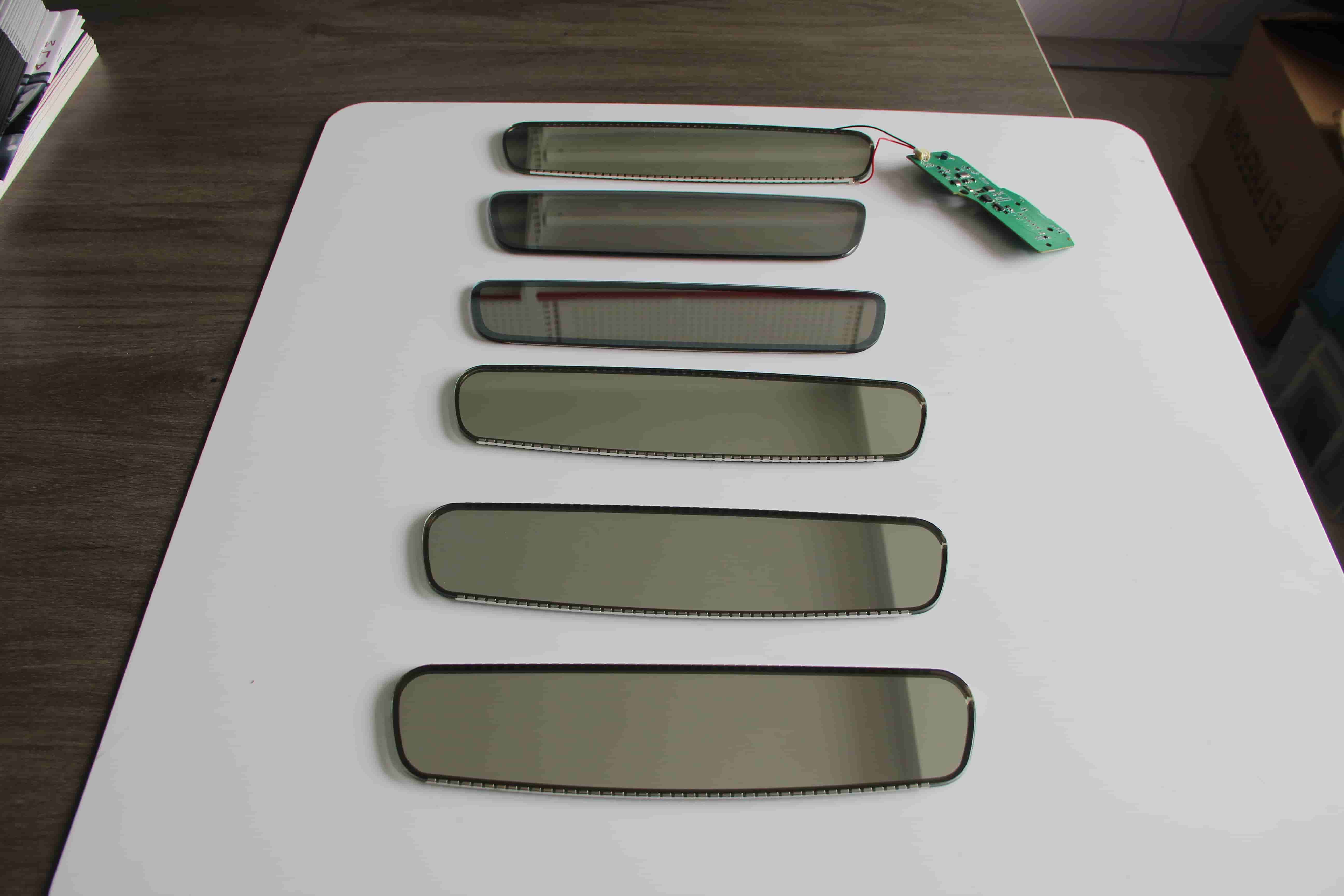

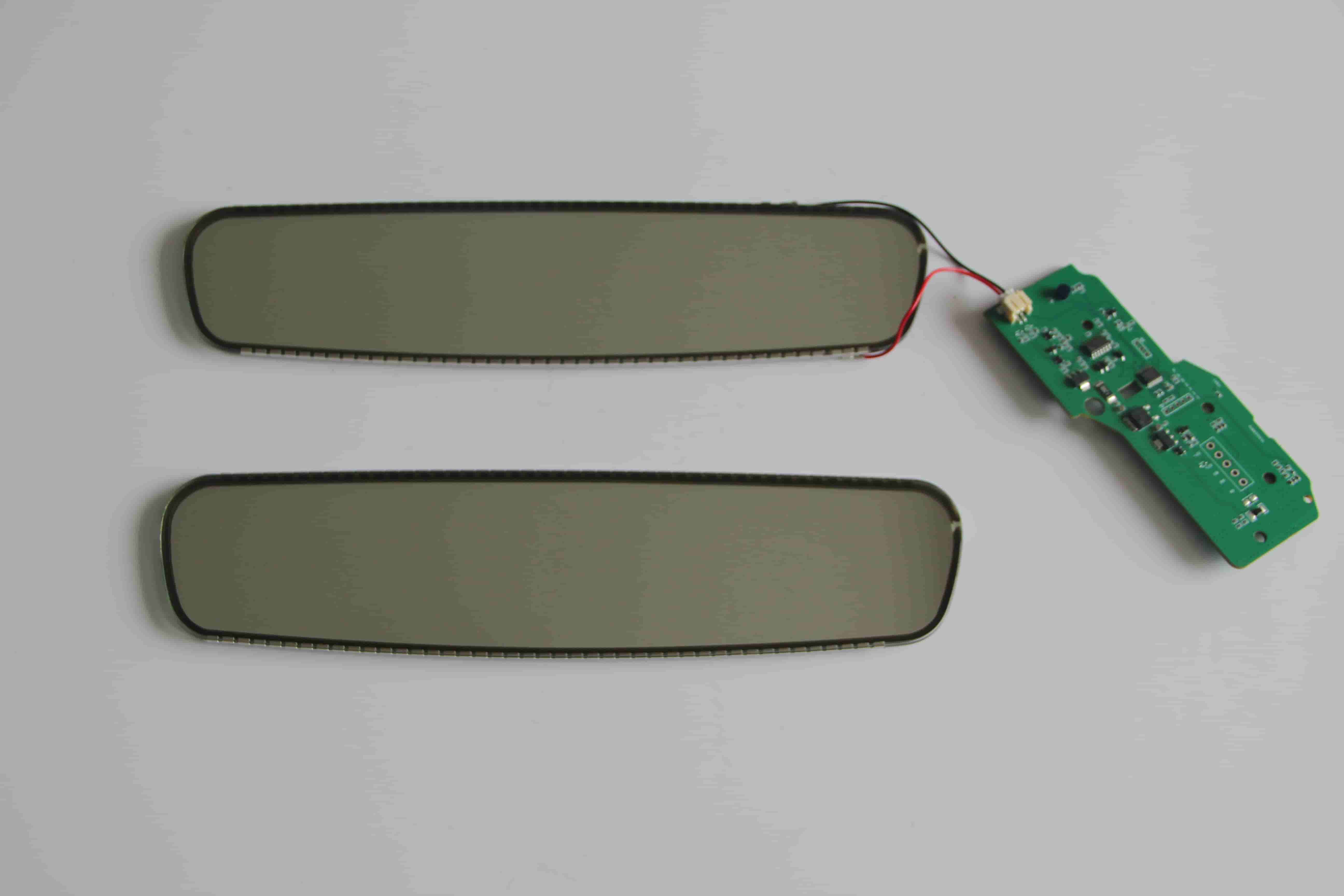

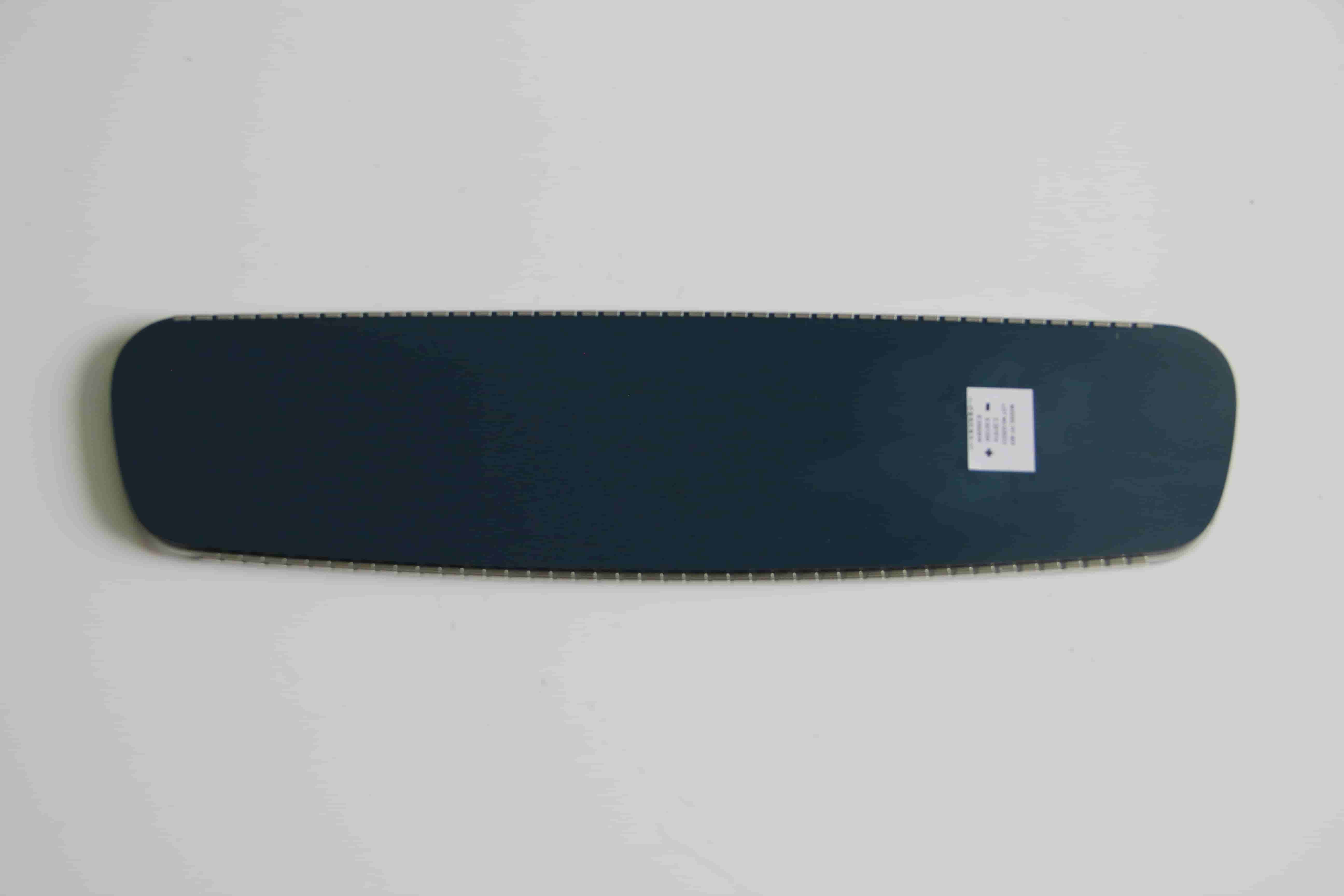

Electrochromic lenses, also known as EC mirrors, are composed of conductive glass, adhesives, electrochromic materials, metal electrodes, and other components. It is a type of lens with the function of electrification and color change. When electrified, the lens can reduce the light reflected by the lens to the naked eye of the human body, achieving anti glare effect. Currently, it is mainly used in fields such as automobiles, aviation, and construction.

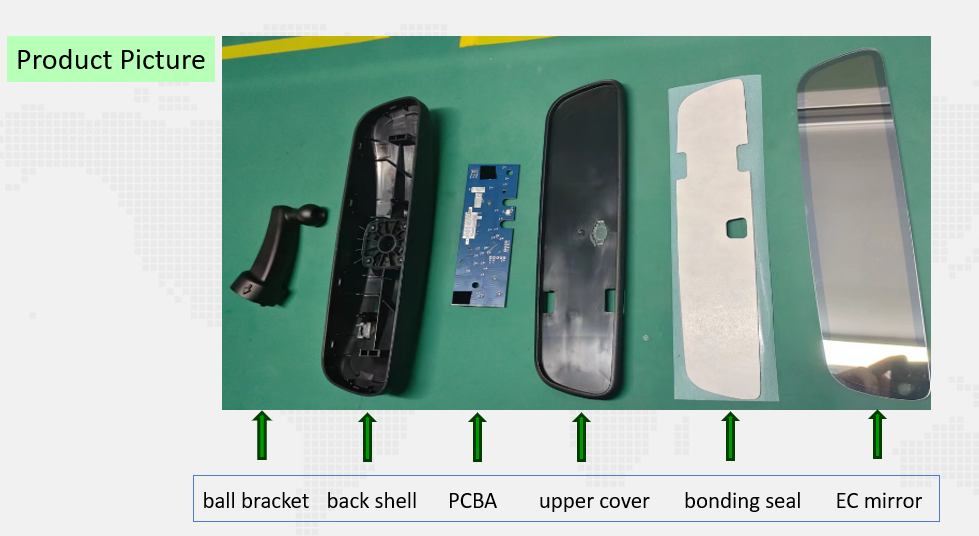

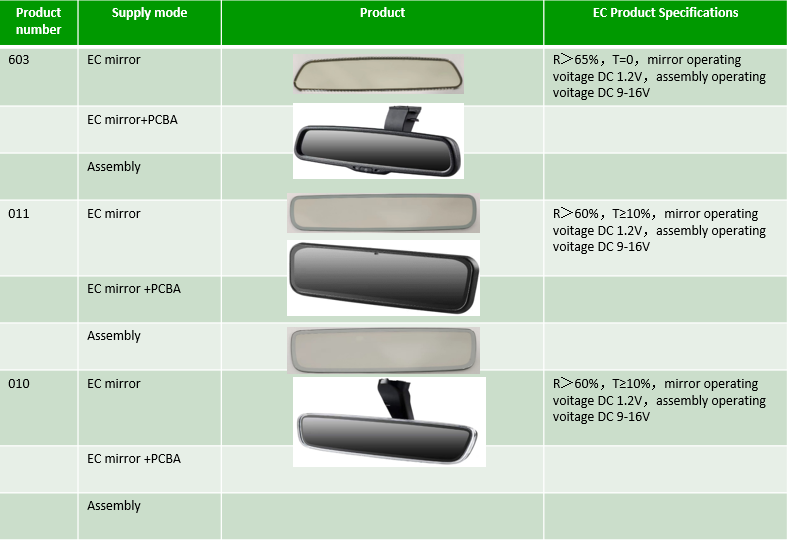

2.Product Description
3.Working Principle
The electronic anti glare interior and exterior rearview mirrors for automobiles are mature products under the application technology of EC glass. When a vehicle equipped with electronic anti glare interior and exterior rearview mirrors for automobiles is driving at night, when the headlights behind the vehicle are illuminated on the interior and exterior rearview mirrors, the electronic anti glare interior and exterior rearview mirrors will instantly change the reflectivity of the lenses, preventing the glare caused by the rear headlights to the driver and avoiding safety accidents caused by glare.
Electrochromic technology anti glare principle: Anti glare is composed of an EC lens, two photosensitive sensors, and an electronic controller. Under specific conditions, it has a constantly changing anti glare function. When strong light shines on the rearview mirror, the processor receives the intensity difference information received by the front and rear photosensitive sensors. When the intensity of the rear light is greater than that received by the front, the color of the mirror surface quickly turns dark green, Reduce the reflection of strong light by absorbing the strong light brought by the rear car. Through anti glare technology, it can ensure that drivers can have a good driving view even in glare environments.

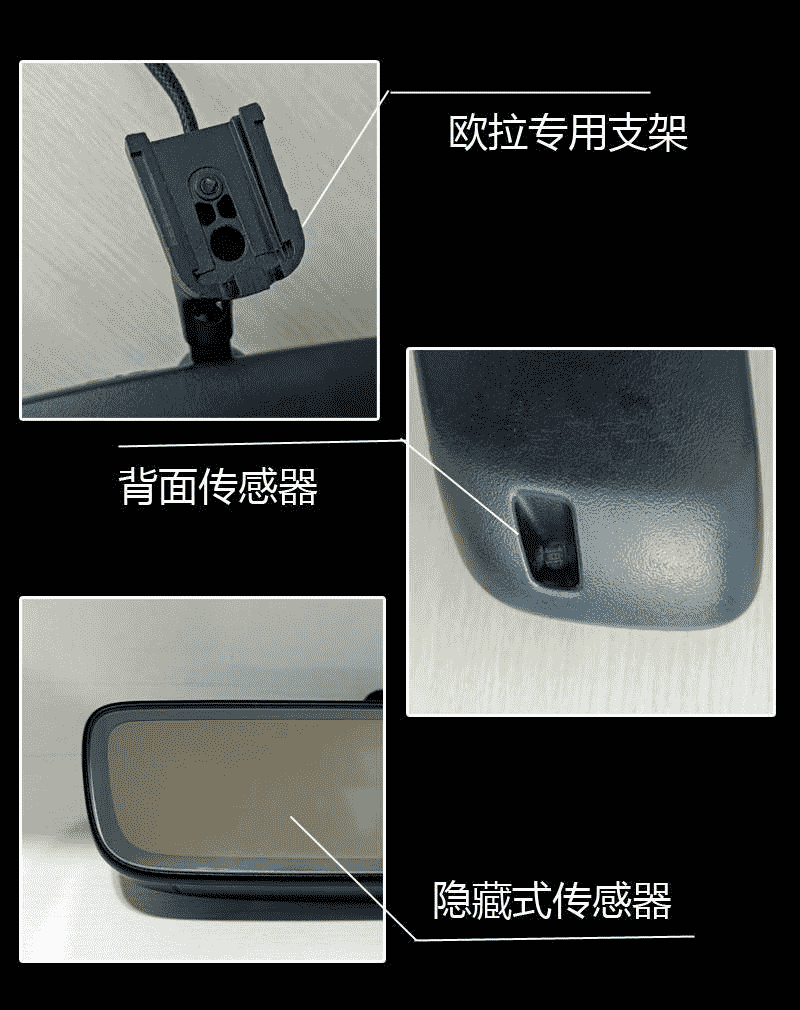

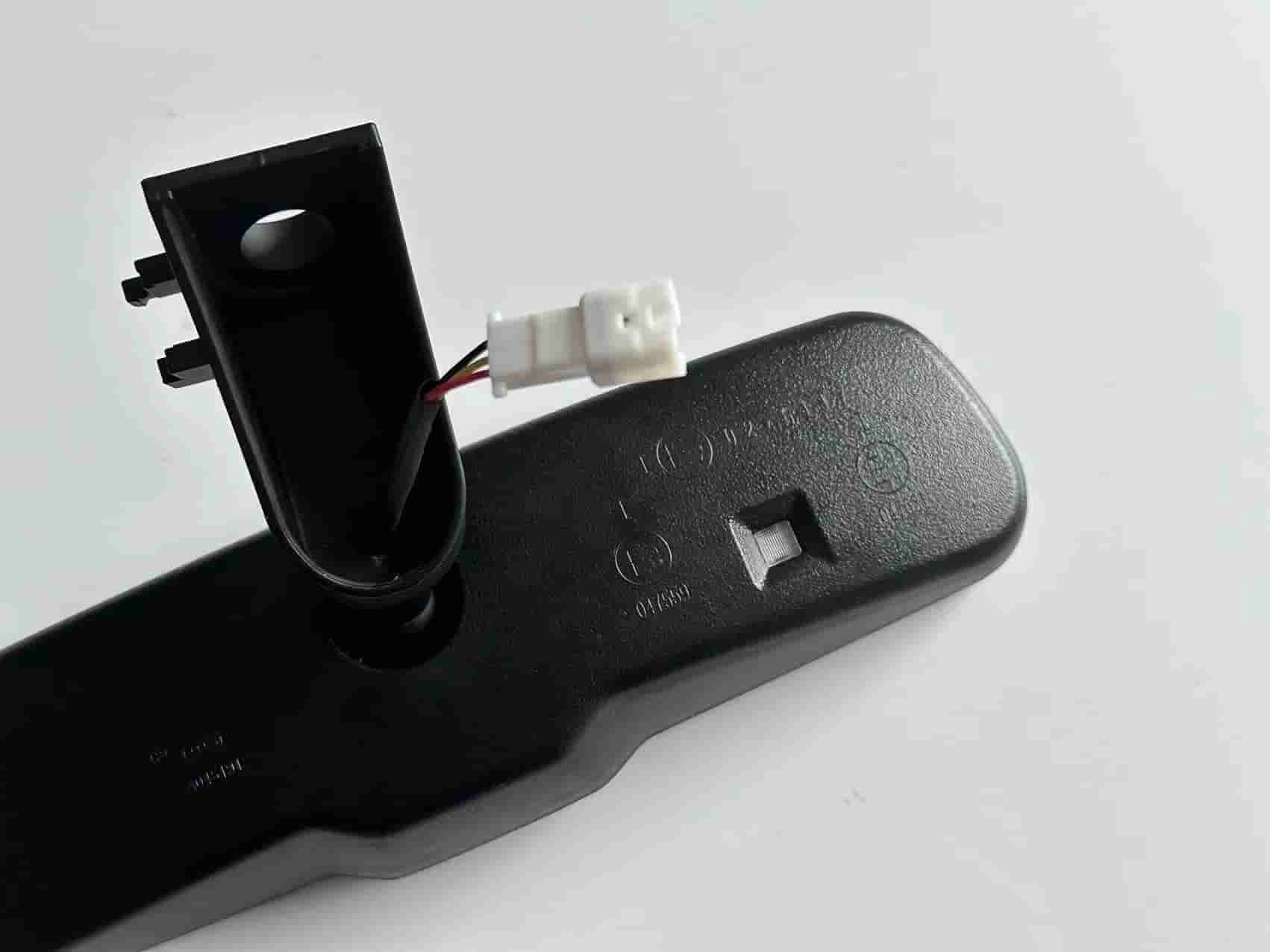

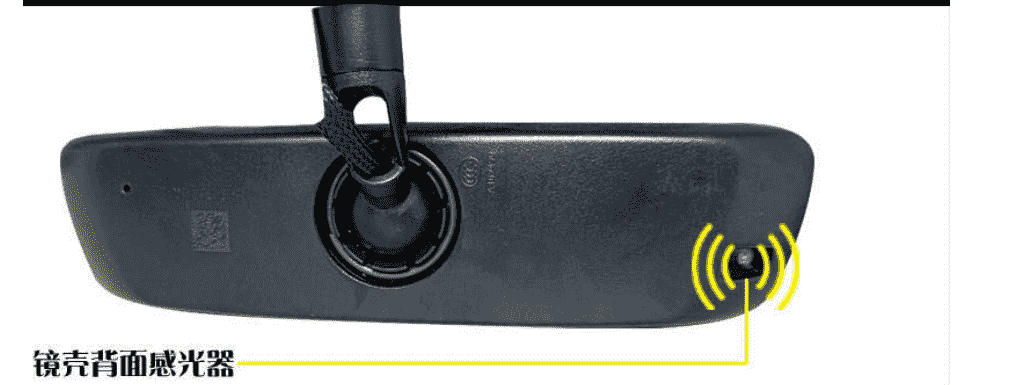

Mirror shell back photosensitive device
The function of this sensor is to detect the light in front of the car, such as sensing that it is dark in front of the car (such as at night or entering a tunnel). The electronic sensing system begins to enter working mode.
The function of this sensor is to detect the light in front of the car, such as sensing that it is dark in front of the car (such as at night or entering a tunnel). The electronic sensing system begins to enter working mode.

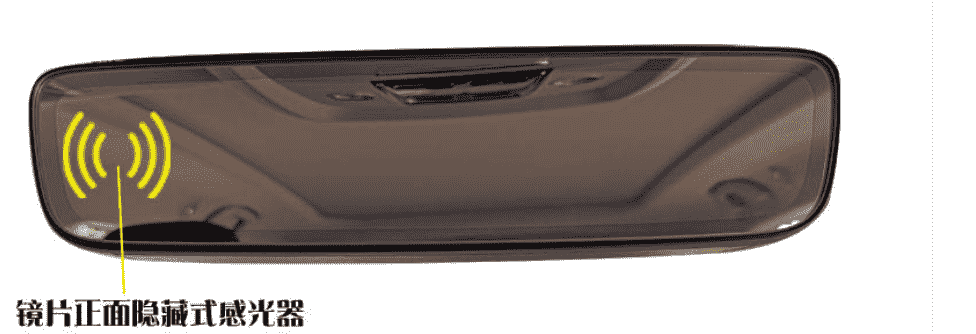

Hidden photosensitive device on the front of the lens
The function of this sensor is to detect light inside or behind the vehicle. When the outside of the vehicle is dark or in a tunnel, and this sensor detects strong light shining on the rear of the vehicle, the color of the electronic anti glare lenses inside the vehicle darkens, filtering out strong light. When the strong light disappears from the rear, the electronic anti glare lenses inside the vehicle return to normal lens color.
The function of this sensor is to detect light inside or behind the vehicle. When the outside of the vehicle is dark or in a tunnel, and this sensor detects strong light shining on the rear of the vehicle, the color of the electronic anti glare lenses inside the vehicle darkens, filtering out strong light. When the strong light disappears from the rear, the electronic anti glare lenses inside the vehicle return to normal lens color.
How to manually upgrade the automatic anti glare function from low configuration to high configuration, while also having high-definition mirrors?
Car dealers' rearview mirrors are generally designed and customized by third-party professional car rearview mirror manufacturers, which are commonly referred to as original factory accessories. There are also technology research and development companies in China that break the monopoly of foreign markets and aim to ensure the quality of users from being affected by reflection or external light source glare. The automatic anti glare rearview mirror of the Gu Zhigan brand is developed and produced by Degu Technology, which meets customers' diverse customization needs in terms of appearance, functions, and other aspects. Car owners can upgrade this function through modification stores.
Driving at night is a major factor affecting traffic safety, and insufficient lighting at night and strong light from vehicles coming from behind are the biggest safety hazards of driving at night. The production and application technology of electrochromic materials and devices, as a strategic high ground for the development of high-tech in the world, requires customization of different models of exterior rearview mirrors to prevent glare, which has become a trend of automotive intelligence. Automatic reduction of strong light makes drivers more worry free.
