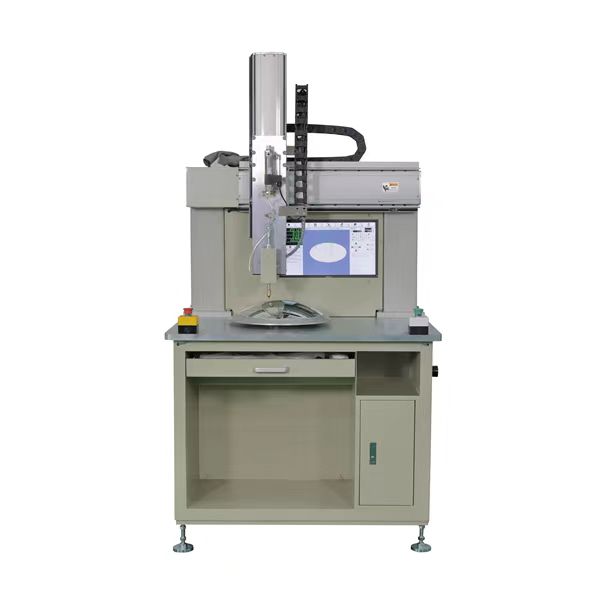

CNC 4-axis deep curvature special-shaped glass
2023-12-09
Brief Introduction:
The equipment by precision manipulator, servo drive system, computer control system, and the workbench, cutting knife has always aimed at the center of the arc glass , can be precisely adjusted glass cutting depth. This device is especially suitable for cutting deep curvature glass, which can be widely used in automobile rearview mirror, magnifying glass, household electrical glass and photovoltaic glass production.
The equipment by precision manipulator, servo drive system, computer control system, and the workbench, cutting knife has always aimed at the center of the arc glass , can be precisely adjusted glass cutting depth. This device is especially suitable for cutting deep curvature glass, which can be widely used in automobile rearview mirror, magnifying glass, household electrical glass and photovoltaic glass production.
●Cutting range: ≯Φ550 mm, can be customized
●The minimum curvature radius: SR diameter 100mm
●Cutting thickness: 1-5mm, can be customized
●Cutting precision: no more than +/-0.10mm
●Cutting speed: 20M/min
●Control system: CNC computer control, four-axis linkage
●Drive system: servo motor, Precision ball screw,ultra-precision planetary gear
●Work table size: 1060×800mm
●Input power: single phase 220V/ 2.5kw, other voltage level can be customized
●Equipment volume:1060×800×1900mm
Usage：
The machine operating process is as follows: turn on the power supply, gas source and computer. Open files for the cut lens outline, or draw the cut lens outline directly in the CAD program. The cutting process will automatically be programmed, and the cutting parameters will be input into the computer for later recall. These are both done simultaneously.
The operator places the pending lens on the template, adjusts the position of the knife, and presses the start switch. The cutter will then operate in accordance with the program requirements. The knife wheel will automatically center during the cutting, and return to the original position when cutting is complete.
The operator places the pending lens on the template, adjusts the position of the knife, and presses the start switch. The cutter will then operate in accordance with the program requirements. The knife wheel will automatically center during the cutting, and return to the original position when cutting is complete.
